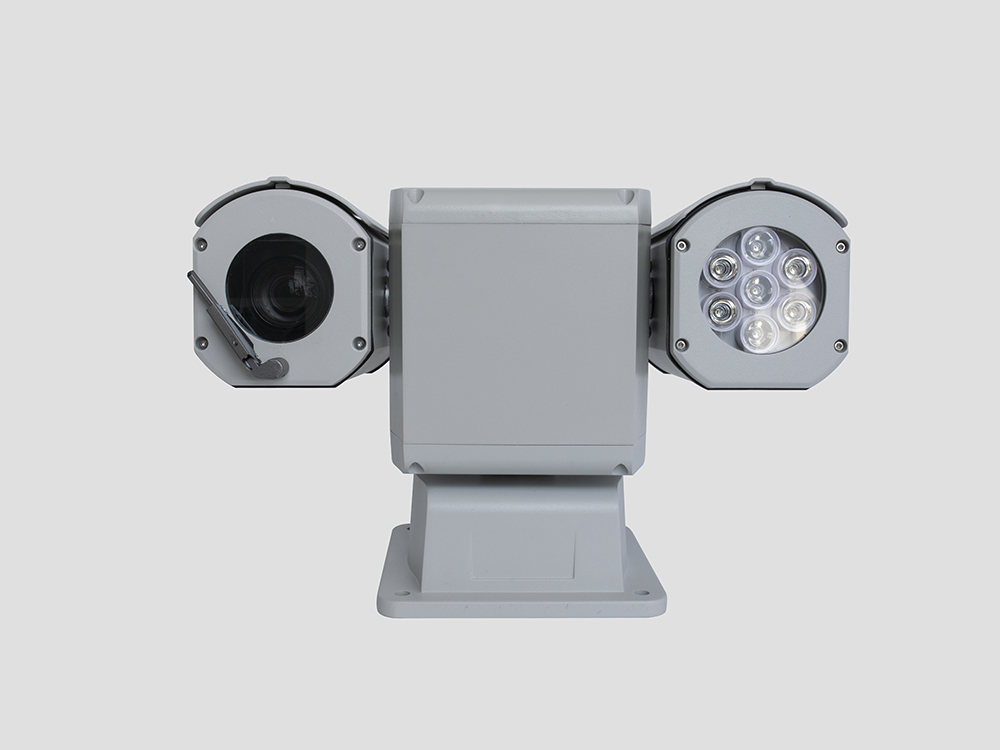

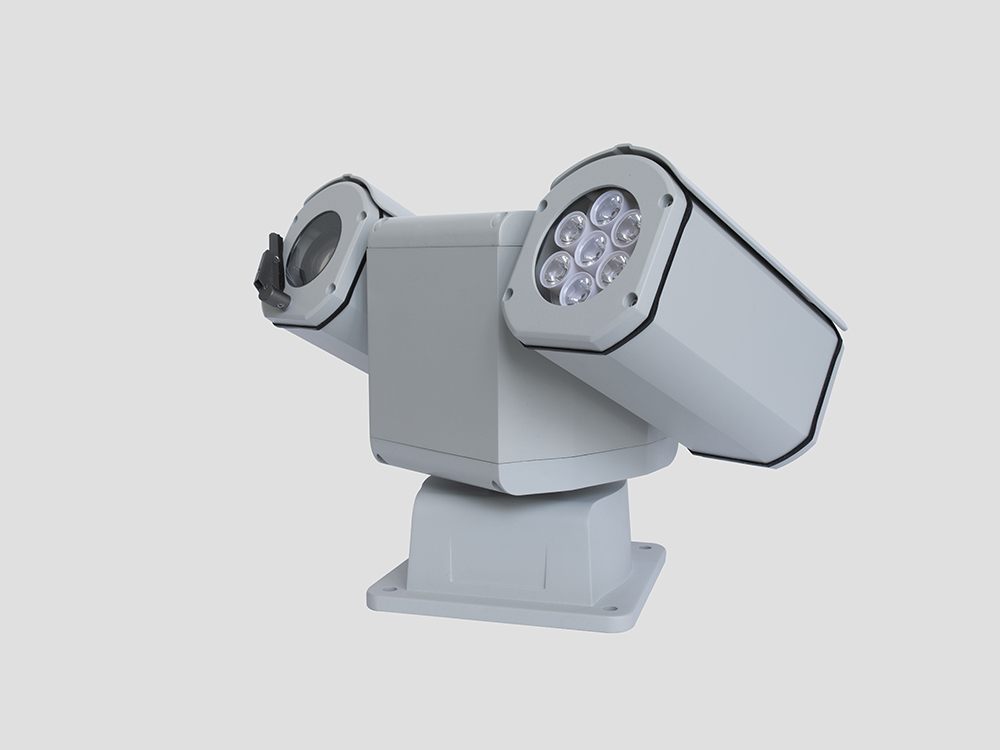

Intelligent IR/Laser Black Light Integrated PTZ Camera
GS-T806-HD Series
Optional Configuration: Network, SDI, Network + SDI dual output
Lighting Mode: Infrared, White Light, Laser
Features:
l The glass of the camera compartment has an automatic defogging function, which effectively solves the repeated fogging and condensation of the glass caused by the temperature difference in the camera compartment.
l It supports self-correction function and adopts closed-loop high-precision motor control technology. After the pan-tilt deviates, it can automatically return to its original position to ensure that the image does not deviate.
l With 3D frame selection function, the monitoring operation is convenient.
l With wiper function, the material has good weather resistance and is easy to replace.
l Infrared fill light design, more flexible and reasonable filling light at night. White light and laser light are also available.
l The voltage stabilizing module has wide adaptability to power supply.
l Die cast aluminum alloy design, protection grade IP67.
l It can be expanded and equipped with thermal imaging sensor.
l It supports 3D digital noise reduction, strong light suppression, anti-shake and wide dynamic range.
l It has black light full-color camera, through AI ISP image enhancement algorithm, it can achieve ultra-low light full-color and non-light full-color.
l Optional on-board shock absorber.
l The whole system adopts RS485 online upgrade to facilitate the customization, upgrade and update of PTZ programs.
Infrared : Imported array infrared lamps, multi-group angle coordination, service life can reach up-to 30,000 hours, and the night vision distance 100-120 meters.
White light : Using high-intensity dot-matrix white light-emitting chips, the night vision distance is 80-100 meters.
Laser : Imported 808nm laser which is used to achieve synchronous zooming, the angle is adjustable or automatically adjusted according to the multiple of the camera, the laser spot angle is 1° to 50°, and the laser power is optional
Thermal Imaging : The Thermal imaging equipment can be customized.
Product Application:
It can be widely used in vehicle mobile law enforcement, substation, iron tower, inspection robot and other scenes.
|
PTZ Specifications: |
|
|
Pan Fastest Speed |
100°/S |
|
Tilt Fastest Speed |
80°/S |
|
Pan Manual Speed Control |
0°—80°/S |
|
Tilt Manual Speed Control |
0°—60°/S |
|
Pan Angle |
360°endless rotation |
|
Tilt Angle |
-90°— +90° |
|
Preset |
256 positions |
|
Wiper |
support |
|
Fill Light |
IR：>100M |
|
Relative Humidity |
<90% |
|
Protection Level |
IP66 |
|
Working Temperature |
-40°C — +70°C |
|
Power Range |
AC24V ±10% 45W Max/ DC9-30V for optional |
|
Weight |
6kg |
Camera parameters: (the zoom module is optional)
|
Sensor |
1/2.8 Exmor CMOS |
|
Zoom |
30x optical zoom |
|
16x digital zoom |
|
|
Focal Length |
f=5.1mm-153mm |
|
Effective Pixels |
4MP |
|
SNR |
≥50dB |
|
Minimum Illumination |
0.0005Lux (color) |
|
0.0001Lux (B/W) |
|
|
BLC |
ON/OFF |
|
White Balance, Aperture, Focus |
Automatic / Manual |
|
Color/Black and White Automatic Conversion |
Automatic |
|
Electronic Shutter |
1/1～1/10,000s |
|
Electronic Fog Penetration |
Support |
|
Electronic Image Stabilization |
Support |

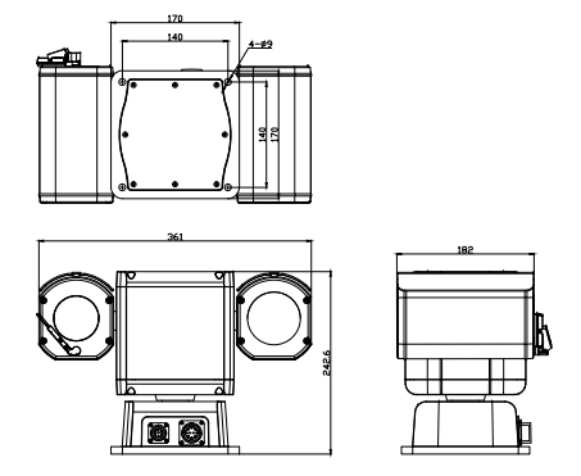

Dimension (mm):

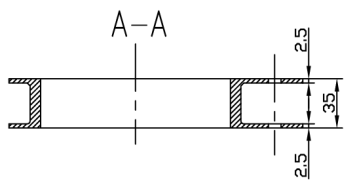

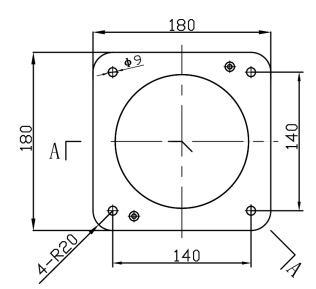

Shock Absorber:
