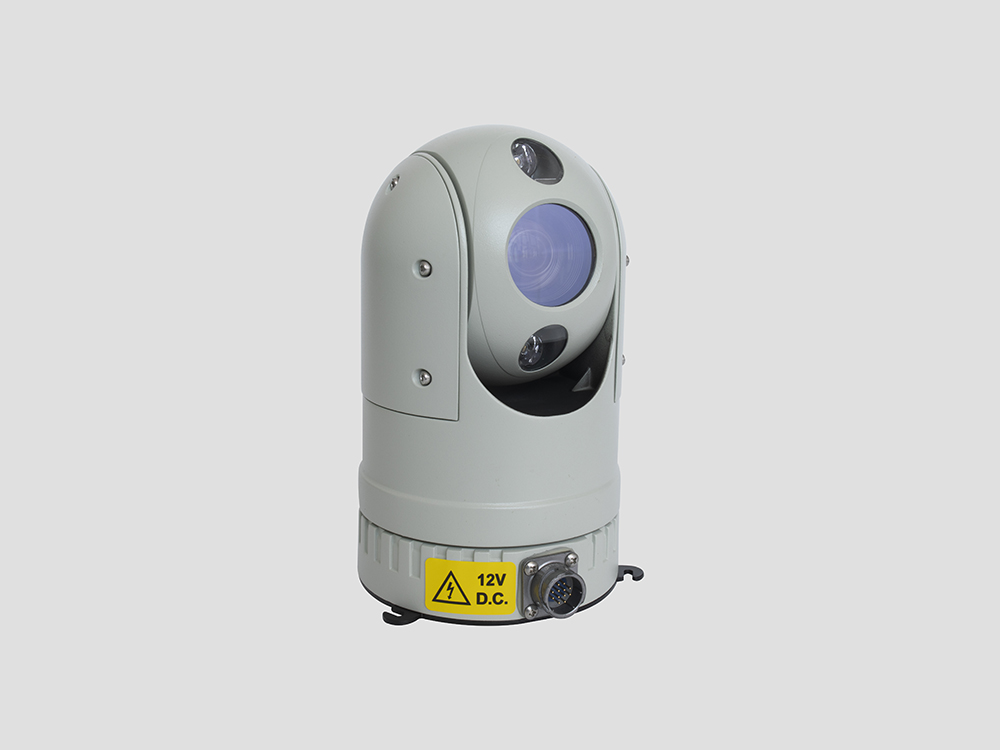

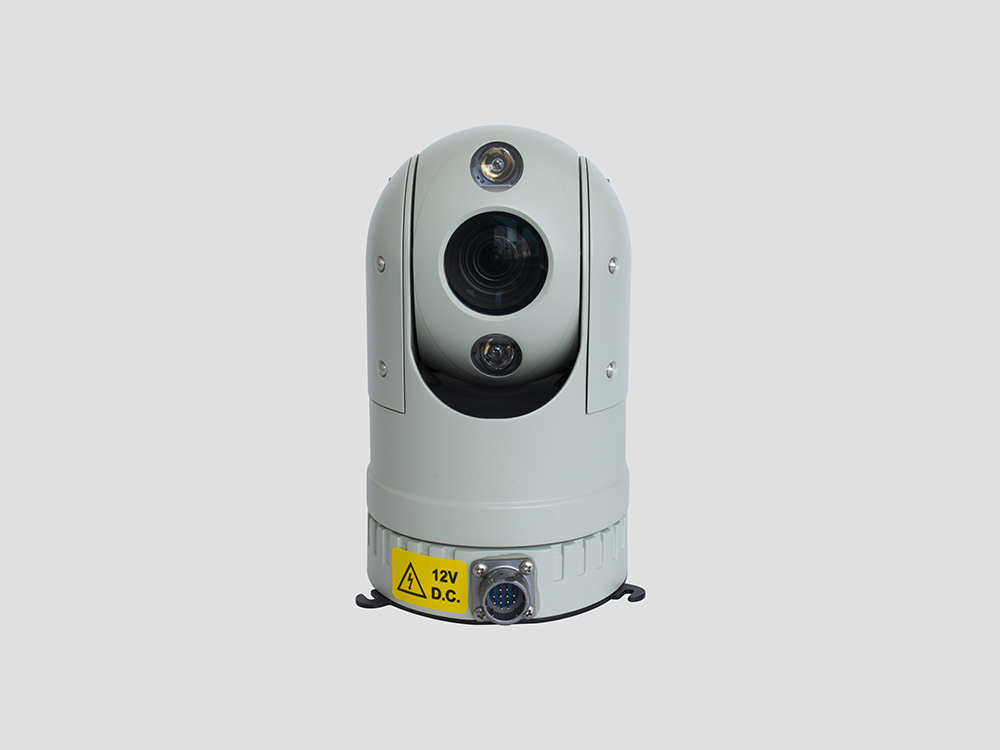

GS-D902-HD-IR Series
Optional configuration: Network, SDI, AHD
Fill light method: infrared or white light
Features:
l PTZ has a variety of installation ways.

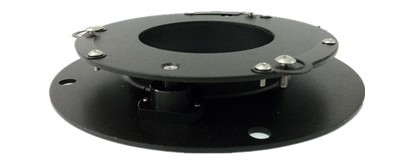

l The bottom shock absorber, together with the on-board cloud bracket, which is installed on the roof of the car.
l The bottom magnet is placed on the tripod for site survey or video conference.
l The powerful magnetic base at the bottom can be directly adsorbed on the roof without installing a vehicle support on the roof, which is convenient for loading and unloading.
l It adopts highly integrated 8-bit processor, with extremely low power consumption and strong stability.
l It is driven by 0.9 ° precision motor, with stable low speed and smooth operation without jitter.
l Industrial grade components are selected, which are suitable for all kinds of extreme weather.
l Exquisite structural design, high-strength aluminum alloy precision casting shell, impact and corrosion resistance
l 256 preset bits can be stored, and the data can be memorized after power off. After power on, it will automatically return to the original state before power off.
l It can intelligently set six cruise tracks, four line scanning commands and one pattern scanning function.
l With homing function, it can be homing to track, line scan and preset position.
l The protection grade reaches IP66 and supports level III lightning protection and surge protection
l The whole system adopts RS485 online upgrade to facilitate the customization, upgrade and update of PTZ programs.
IR：Imported array infrared lamps are adopted, with a service life of 30000 hours and a night vision distance of 50-80m.
IP：PTZ supports the mainstream million digital HD integrated movement and HD sensor to realize HD image acquisition. It is compatible with the mainstream HD platform and seamlessly connected. It supports up to 1080p output, dual bitstream and HD capture, and IE browsing.
SDI：PTZ supports megapixel Full HD movement, HD-SDI digital interface output, megapixel Digital HD image lossless, real-time transmission, no delay, multiple resolutions adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25).
Coaxial HD：PTZ supports the general AHD / CVI / TVI coaxial HD movement, and also supports the output of coaxial HD hard disk video recorder. The image is not encoded and compressed, and the full real-time high-definition picture is transmitted co-axially.
Product application:Live broadcast / mobile law enforcement / urban public security / video conference / urban management and public security law enforcement / special Patrol / intelligent sentry box
PTZ Specification:
|
Pan preset speed |
300°/S |
|
Tilt preset speed |
120°/S |
|
Pan manual control speed |
0°—220°/S |
|
Tilt manual control speed |
0°—90°/S |
|
Pan angle |
360°endless rotation |
|
Tilt angle |
-20°—+90° |
|
Preset |
256 positions 6 tracking |
|
Control mode |
RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
|
Relative humidity |
Less than 90% |
|
Protection Level |
IP66 |
|
Working temperature |
-35°C—+65°C |
|
Power consumption |
DC10.8V-DC18V |
|
Impact resistance requirements |
≥4G |
|
Wiper |
Support |
|
Installation ways |
Variety of installation ways according to the environment |
|
Weight |
2.5kg |
Camera Specification：（Optional）
|
Image Sensor |
1/2.8 Exmor CMOS |
|
Zoom |
20X optical |
|
12X digital |
|
|
Focus Length |
f=4.7mm-94mm |
|
Active Pixels |
2.0 Mega Pixel 1080P output |
|
S/N Ratio |
≥50dB |
|
Min. Illumination |
0.001Lux (Color) |
|
0.0001Lux (D/N) |
|
|
Backlight Compensation |
ON/OFF |
|
White balance, aperture, focus |
Auto/Manual |
|
Automatic color/black and white conversion |
Auto |
|
Electronic shutter |
1/1～1/10,000s |

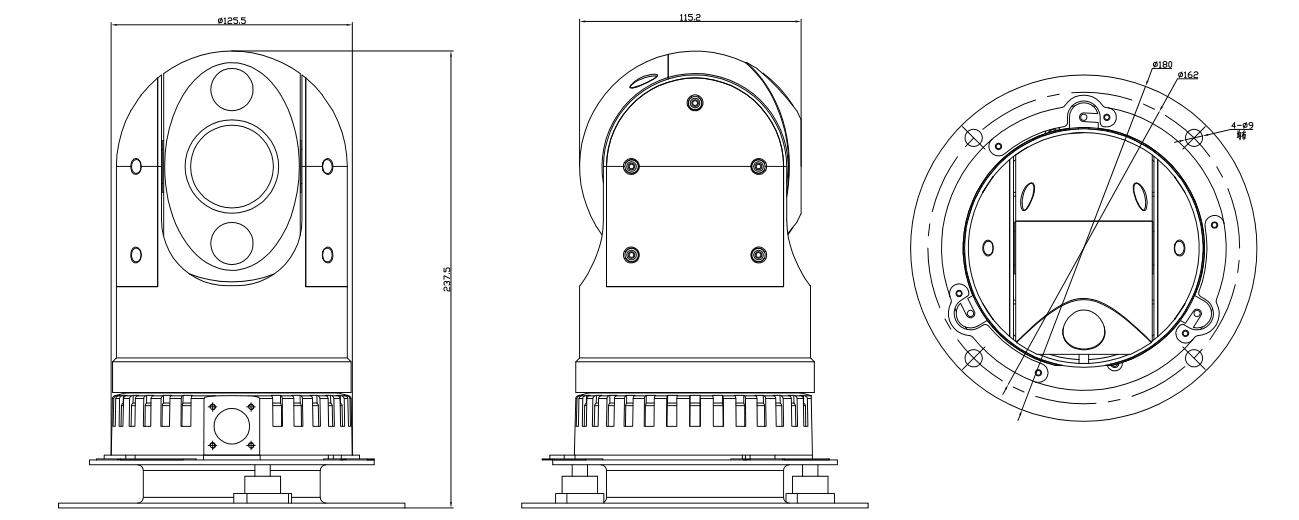

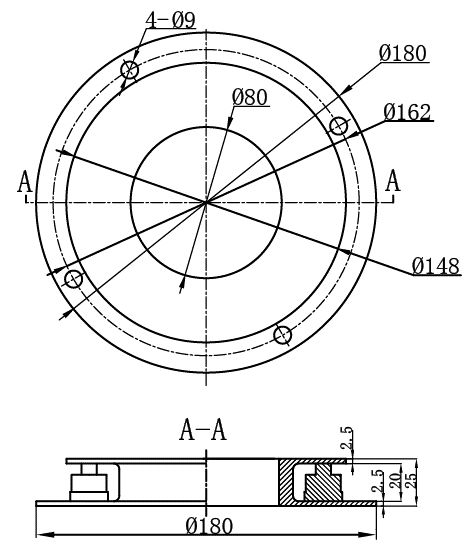

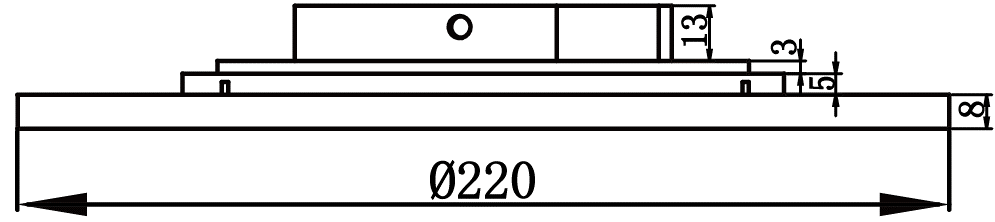

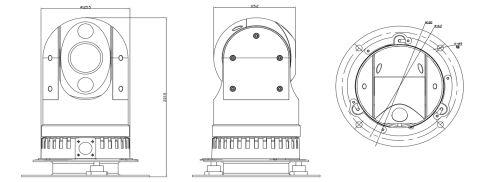

Dimensions：（MM）
